Broadcasting¶
Description¶
This example tries to solve the problem of sending a signal every node in a tree, and returning the number of children of every node.
Model¶
The corresponding P-Lingua file is the following:
/* Broadcast with acknowledgement: counting the number of children of a DAG*/
/* At the end of the execution each node should contain a number of bs equal
to the number of children of the respective node */
@model<simple_kernel_psystems>
def main()
{
@mu = [[a,b]'1 [a]'2 [a]'3 [a]'4 [a]'5 [a]'6 [a]'7 [a]'8]'0;
[a,b]'1 --> [b]'2 [b]'3 [b]'4;
[d --> b]'1;
[a,b]'2 --> [d]'1;
[a,b]'3 --> [c]'3 [b]'5 [b]'6;
[d]'3 --> [b]'3 [d]'1;
[c]'3 --> [d]'1;
[a,b]'4 --> [c]'4 [b]'7;
[d]'4 --> [b]'4 [d]'1;
[c]'4 --> [d]'1;
[a,b]'5 --> [d]'3;
[a,b]'6 --> [c]'6 [b]'8;
[d]'6 --> [b]'6 [d]'3;
[c]'6 --> [d]'3;
[a,b]'7 --> [d]'4;
[a,b]'8 --> [d]'6;
}
Files¶
A first run¶
- Custom application, defining the needed input and output tables for broadcasting problem, along with some custom graphs.
- Model file, P-Lingua file with for a P system solving an instance of the broadcasting problem. The custom interface enable the user to introduce the data corresponding to each different scenario.
- Scenario file.

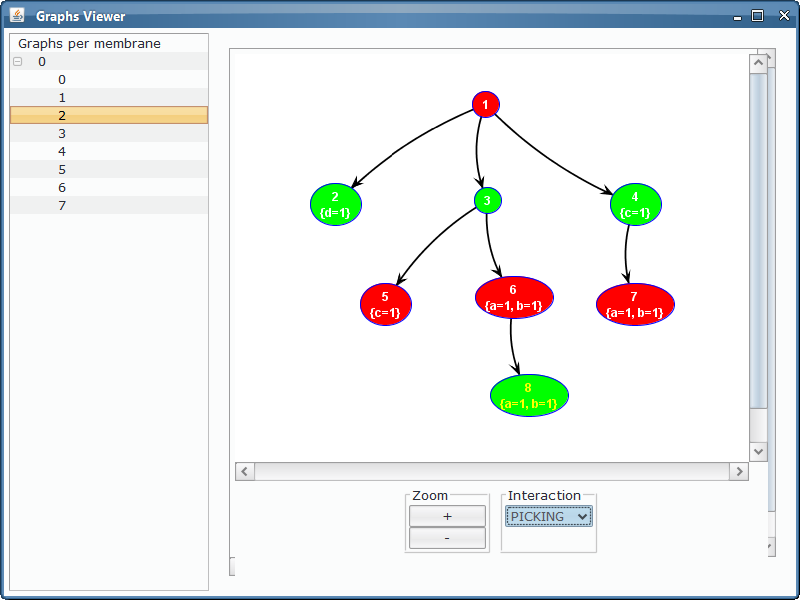

Final results¶
